| Place of Origin: | China |
| Brand Name: | Burgeon |
| Certification: | EN |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15000 seats per month |
| Product Name: | Telescopic Tip-up Seating System | Platform Unit: | Recessed Unit |
|---|---|---|---|
| Row Depth: | 850-900mm | Row Riser Height: | 300-350mm |
| Stair Width: | 1000mm | Seat Color: | Blue |
| Application: | Indoor Sport Hall | Key Word: | Telescopic Folding Seating System |
| High Light: | HDPE 550 Seat Telescopic Seating Systems,Telescopic Seating Systems,EN12727 Telescopic Seating Systems |
||

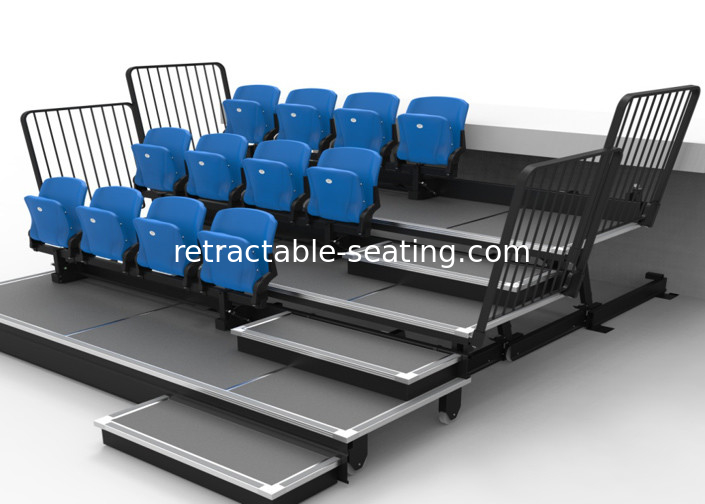

300mm Row Riser Height Telescopic Seating Systems With HDPE Seat
Quick Detail of Telescopic Tip-up Seating System
Burgeon Telescopis seating system is the latest step in the development of quiet and smooth running retractable seating. It adopts slant frame understructure plus door frame construction. This structure will give the whole grandstands better vertical and horizontal loading capacity. Every parts has been desiged to enhance the system's operations strength and stability.
The Vino tip-up seat's integrated ergonomically design delivers superior comfort and ensure long-term durablity. As a venue operators friendly chair, Vino's low maintenance requirements will greatly help make it extremely popular in the world.
Features of Telescopic Tip-up Seating System
Parameters of Telescopic Tip-up Seating System
| Product name | Telescopic Tip-up seating system |
| Row depth | 850mm-900mm |
| Row riser height | 300mm-350mm |
| Stair width | 1000mm |
| Seat width | 460mm |
| Seat height | 430mm |
| Seat pan depth | 530mm |
| Closed postion depth | 280mm |
| Stanchion material | Aluminum |
| Frame material | Steel with powder coating |
| Seat material | HDPE550 |
| Seat steel surface treatment | Outdoor hot galvanized / Indoor powder coated |
| Seat color | Please refer to Burgeon color swatch |
| Operative method | Manual or power operation |
| Test report | EN12727 |
Operation Ways of Telescopic Tip-up Seating System
1. Manual Operation
Operating Handles:Provide and install manual operating handles constructed of OD steel tubing. Handles to engage pull-bar installed at the first tier.
2. Power Operation
A. Integrated power: Furnish and install an integral automatic electro-mechanical powered frame propulsion system, to open and close telescopic seating. Integral Power and Control system shall be CE stamped and tested.
B. Limited switches: Furnish and install both open and closed limit switches for the integral power system.
C. Motion monitor: Provide flashing light with self-contained warning horn mounted to the telescopic seating for audio and visual warning during integral power operation.
D. Electrical: Seating manufacturer shall provide all wiring within seating bank including remote control device.
E. Electrical switchboard and enclosure: provide a complete switchboard and enclosure with each seating bank.
